AC Hose Type E 11.5mm ID SAE J2064 R134A Automotive AC Hose JUNZE

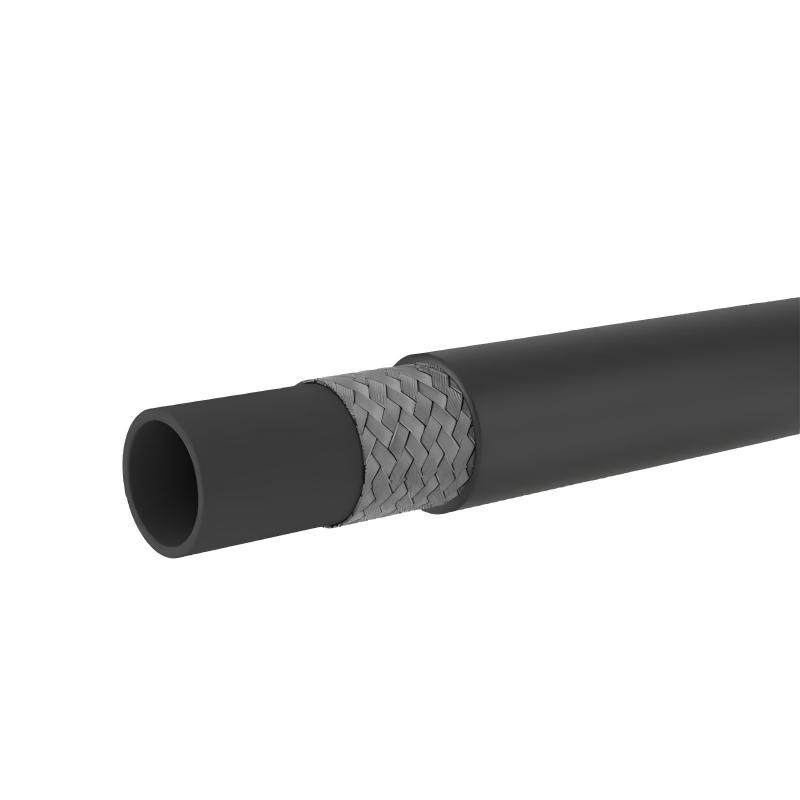

It is not a standard inch size, but it is the spec used across a lot of Asian and European vehicle platforms. JUNZE Type E AC Hose in 11.5mm ID matches that requirement exactly. Same 4-layer construction — nylon barrier, synthetic rubber tube, textile reinforcement, heat/ozone resistant outer cover. Rated for 3.5MPa working pressure with minimum burst pressure of 18.0MPa (A series). Operating temperature from -40°C to +135°C. Compatible with R134a, R404A, and R1234yf. We tested 30 samples from three production weeks for burst pressure. The lowest result was 19.2MPa, comfortably above the 18.0MPa minimum. Consistent braid tension is what makes that possible. We measure it at 10 points per meter during extrusion. It is a detail most hose suppliers do not talk about, but it directly affects your crimping consistency.
5.0
Color:
Customized
Working Temputure:
-40℃ to 135℃
Refrigerant:
R 134a/R 1234yf
Standard:
SAE J2064, SAE J3062 QC/T664-2019
Product name:
Type E Air Conditioning Hose
Payment Methods:
T/T, PayPal
Package:
Woven Bag, Carton
Material:
EPDM/CSM/IIR+PA+PET
Size:
8.0mm,10.0mm,13.0mm,etc
Terms:
EXW, FOB, CIF, DDU, DDP
Shipping Options:
FedEx, DHL, Air Freight, Sea Freight, Train
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Details
E型空调管8
E型空调管7
通用空调管6
| Number | Dimension. mm | Inch | I.D. mm | O.D. mm | Wall Thickness mm | Wall Diff Max.mm | Work Pressure | Burst Pressure Min.MPa | Bend Rad | Weight. |
| BH8 | 8.0 | 5/16" | 8.2±0.4 | 19.0±0.5 | 5.25 | 0.6 | 3.5 | 15.0 | 55 | 261 |
| BH10.5 | 10.0 | 13/32" | 10.0±0.5/-0.3 | 23.0±0.5 | 6.0 | 0.6 | 3.5 | 15.0 | 85 | 411 |
| BH13 | 13.0 | 1/2" | 13.0±0.4 | 25.4±0.5 | 5.0 | 0.6 | 3.5 | 15.0 | 90 | 485 |
| BH16 | 16.0 | 5/8" | 16.0±0.5 | 23.0±0.5 | 6.0 | 0.6 | 3.5 | 15.0 | 105 | 558 |
| A8 | 8.0 | 5/16" | 8.2±0.3 | 28.6±0.5 | 3.5 | 0.4 | 3.5 | 18.0 | 55 | 155 |
| A10 | 10.0 | 13/32" | 10.2±0.3 | 15.2±0.4 | 3.5 | 0.4 | 3.5 | 18.0 | 65 | 178 |
| A11.2 | 11.5 | 13/32" | 11.2±0.3 | 14.8±0.4 | 3.6 | 0.4 | 3.5 | 18.0 | 75 | 201 |
| A13.2 | 13.0 | 1/2" | 13.2±0.3 | 17.2±0.4 | 3.8 | 0.4 | 3.5 | 18.0 | 75 | 241 |
| A15.2 | 15.5 | 5/8" | 15.2±0.4 | 18.4±0.4 | 3.8 | 0.4 | 3.5 | 16.0 | 85 | 271 |
Product Information
SAE J2064 / SAE J3062 / QC/T664-2019 compliant. 11.5mm inner diameter.

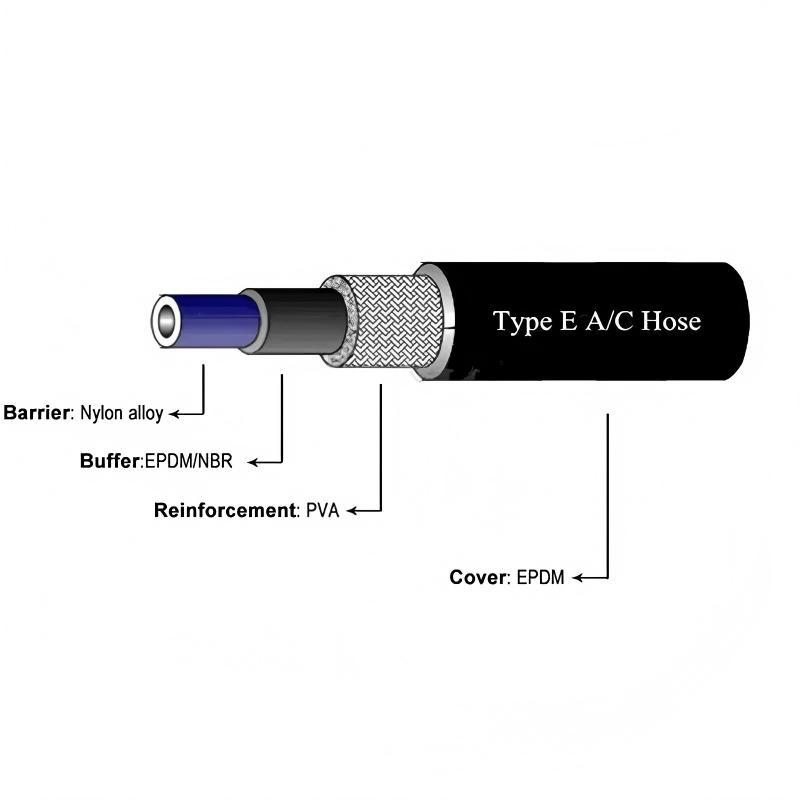

4-layer construction with nylon barrier for low permeation.
Synthetic rubber tube with textile reinforcement.
Outer cover resists heat, oil, and ozone.
Working pressure 3.5MPa, minimum burst pressure 18.0MPa.
Temperature range from -40°C to +135°C.
Compatible with R134a, R404A, and R1234yf.
Commonly used in Asian and European vehicle AC discharge line applications.
Specify your vehicle model and AC system type. We will confirm fitment and send a matching sample with crimp specifications within 48 hours.
FAQ
1
Q : Is this E-type AC hose compatible with common refrigerants such as R134a and R1234yf?
A : Yes, it is specially designed for automotive air conditioning systems, with good compatibility and sealing performance for R134a, R1234yf and other refrigerants.
