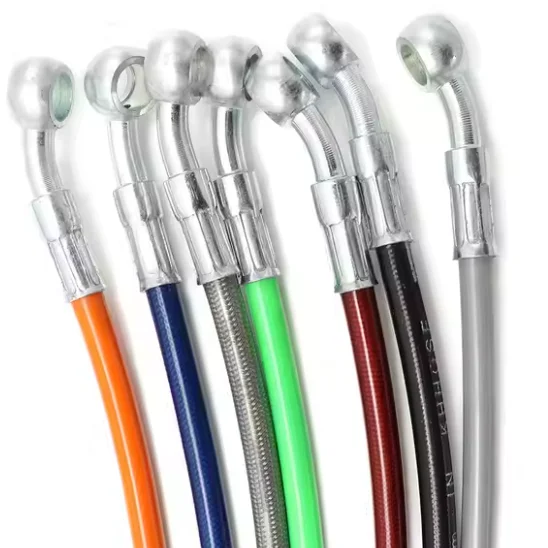

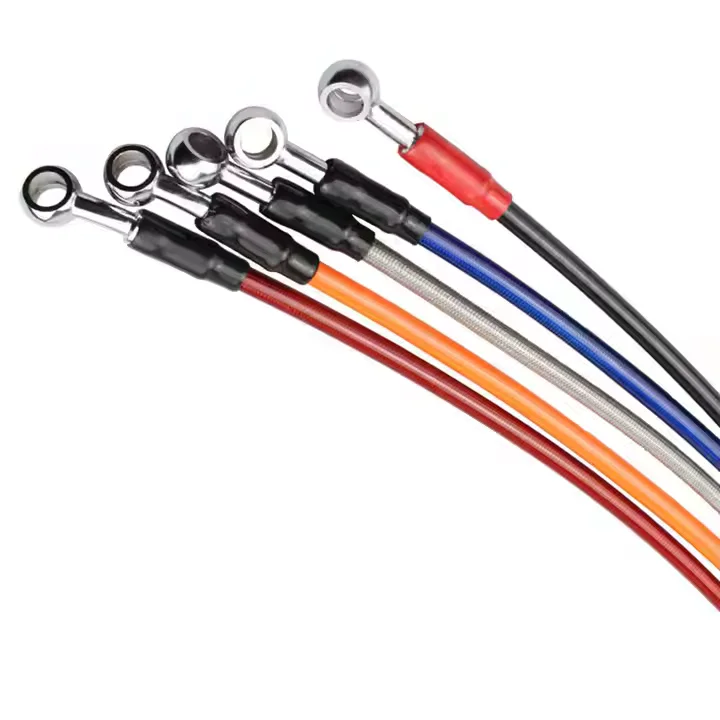

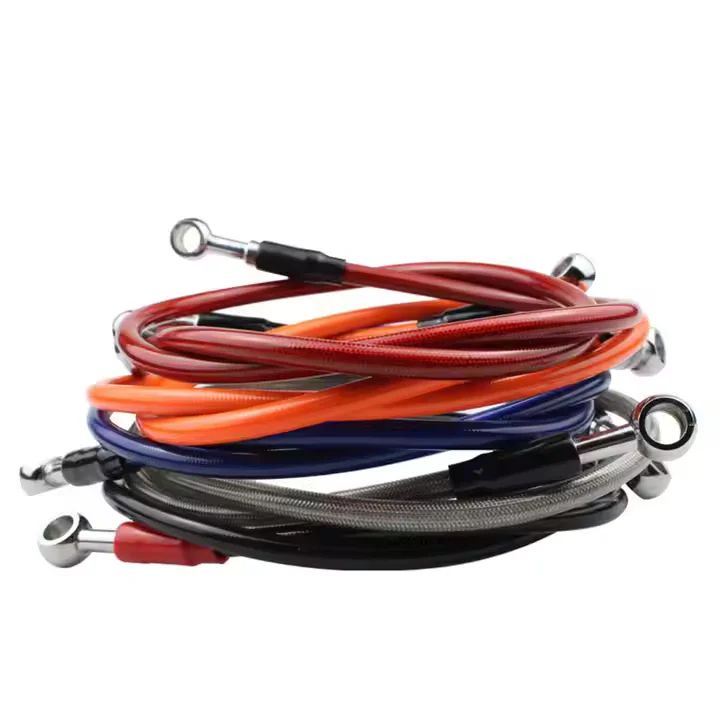

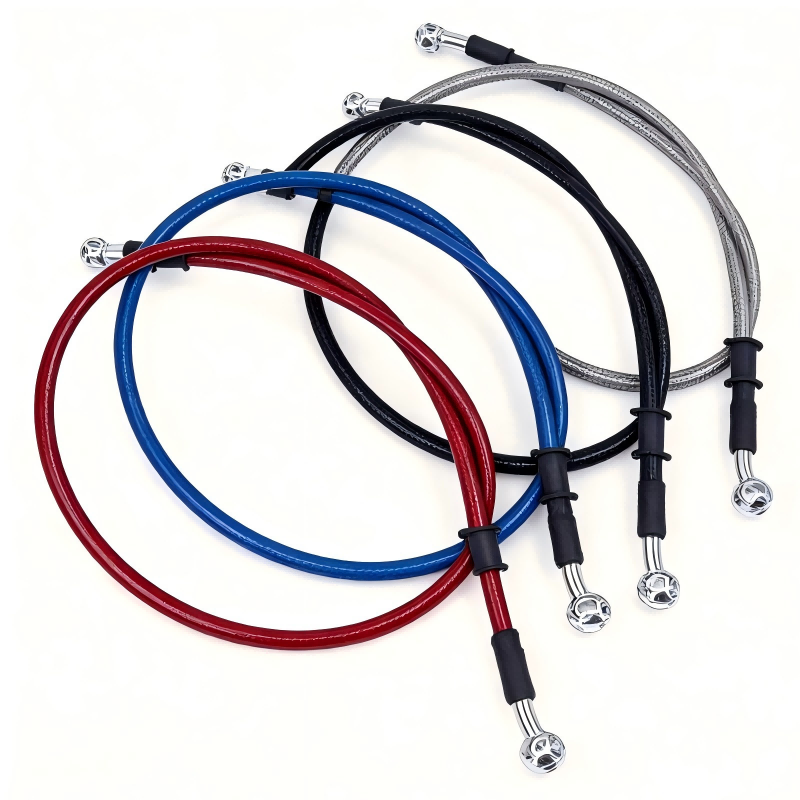

Extended Teflon Brake Hose for Trailers and Long Chassis
Most brake lines come in lengths meant for a standard wheelbase. Trailers, long chassis, and coach builds need more. One-piece runs beat a spliced line every time.
JUNZE's extended-length Teflon brake hose runs in longer single pieces. No unions in the middle to leak, no joins to fail. The PTFE inner tube and stainless steel braid carry the length without sagging or swelling.
Specs hold over the full run — 3.2mm ID, high burst, SAE J1401 certified. Bulk coils or cut-to-length assemblies for the chassis that needs the extra reach.5.0
Color:
Customized (Black / Red / Blue / Green / Orange / Silver / Purple / Yellow / Pink)
Working Temputure:
-65°C to 260°C
Hose Size:
3.2mm ID (1/8")
Usage:
Brake, clutch, fuel, turbo oil, cooling, power steering systems
Type:
Brake Hose / Brake Line
Process:
PTFE extrusion → SS braiding → PU coating → Hydraulic crimping
Standard:
SAE J1401 / GB 16897-2010
Product name:
PTFE Brake Hose / Teflon Brake Hose
Certification:
DOT FMVSS 106
Payment Methods:
T/T, PayPal
Quality:
100% pressure tested, 0.05cc/ft expansion, 14,000 PSI burst verified
Package:
Standard export carton / bulk roll / custom
Material:
PTFE inner tube + 316 SS Wire Braid + PU outer layer
Application:
Automotive, motorcycle, racing, custom builds, industrial
Size:
3.2mm ID × 7.2-7.5mm OD
Shipping Options:
FedEx, DHL, Air Freight, Sea Freight, Train
Feature:
High temp resistance, zero expansion, high burst, corrosion resistant
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Details
Teflon Brake Hose_03
Teflon Brake Hose_05
Teflon Brake Hose_04
| Number | Inner core material | Stainless steel wire type | ID (mm) | OD (mm) | Work pressure (PSI) | Burst pressure (PSI) | Expansion (cc/ft) |
| SAEJ1401-1 | PTFE | 304 | 3.2 | 7.5 | 4660 | 14000 | 0.05 |
| SAEJ1401-2 | PTFE | 304 | 3.2 | 7.2 | 4660 | 14000 | 0.05 |
| Number | Inner core material | Stainless steel wire type | ID (mm) | ID (mm) | Work pressure (PSI) | Burst pressure (PSI) | Temp (℃) |
| SAEJ1401-3 | White core nylon | 201 | 3.2 | 7.5 | 4660 | 8000 | -40~80 |
| SAEJ1401-4 | Black core nylon 12 | 304 | 3.2 | 7.5 | 4660 | 8000 | -40~100 |
| SAEJ1401-5 | White core nylon 12 | 304 | 3.2 | 7.5 | 4660 | 14000 | -40~100 |
| SAEJ1401-6 | White core nylon | 304 | 3.2 | 7.5 | 4660 | 14000 | -40~100 |
Product Information
Every splice is a potential leak point. On a long vehicle, running a single extended line removes those points entirely. It also cuts installation time, since there are fewer joints to torque and test.
The extended lengths handle trailer brake runs, long-wheelbase trucks, and coach applications. We size the line to the actual routing, not a generic catalog length.
Bulk or assembled, standard fittings or custom angles. Give us the measurement and we will run it. For the long runs, contact JUNZE.
FAQ
1
Q : What standards does JUNZE PTFE brake hose meet?
A : All hoses are manufactured to SAE J1401 and GB 16897-2010 standards. They comply with DOT FMVSS 106 requirements for the US market. Each hose is pressure-tested before shipment.
2
Q : Can I get custom lengths and fittings?
A : Yes. Custom lengths from 400mm to 2400mm are available. Fitting options include straight, 28°, 45°, and 90° banjo configurations. Choose your core material, braid type, fitting type, and color — we assemble and pressure-test before shipping.
3
Q : Is this hose compatible with all brake fluids?
A : Yes. The PTFE inner tube is compatible with DOT 3, DOT 4, DOT 5.1, and DOT 5 silicone-based brake fluids. It also handles fuel, oil, methanol, and water, making it suitable for clutch, fuel, and turbo oil line applications.
4
Q : What is the MOQ?
A : Bulk hose MOQ varies by size and quantity. Contact us for volume pricing and OEM contract terms.
