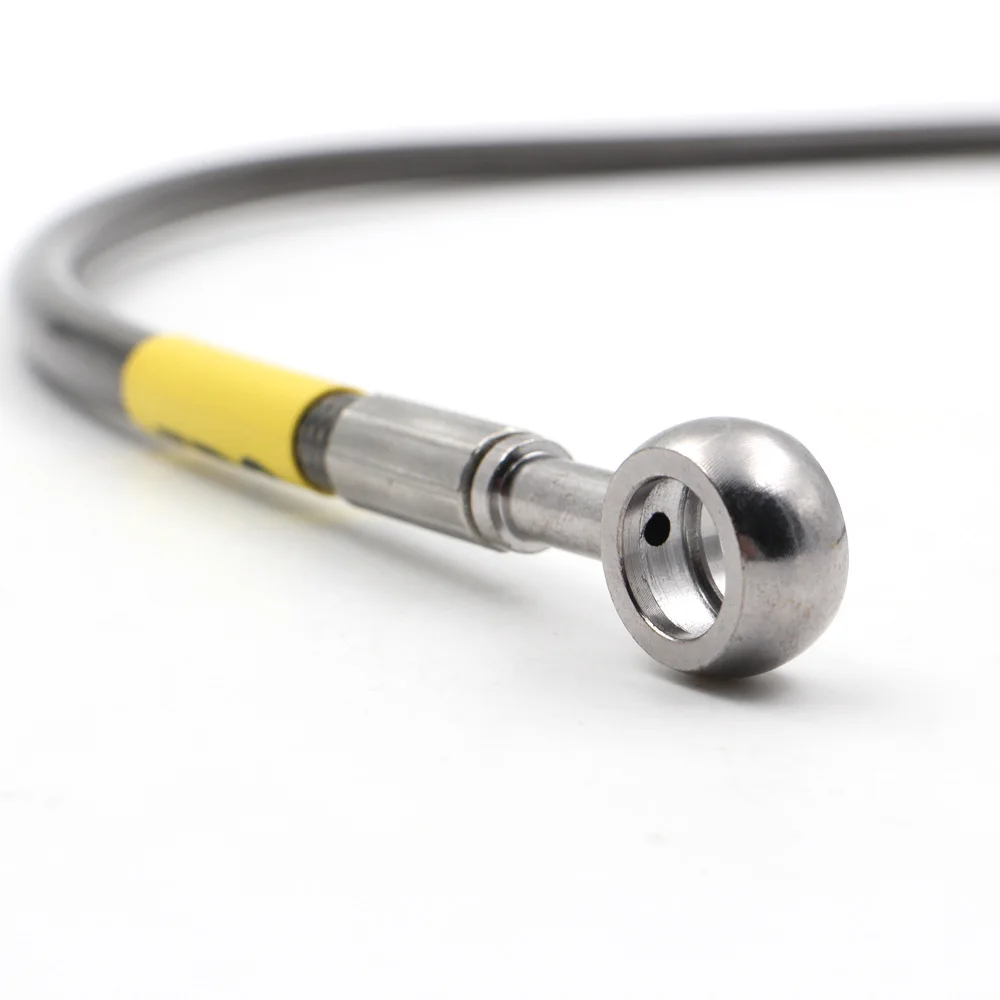

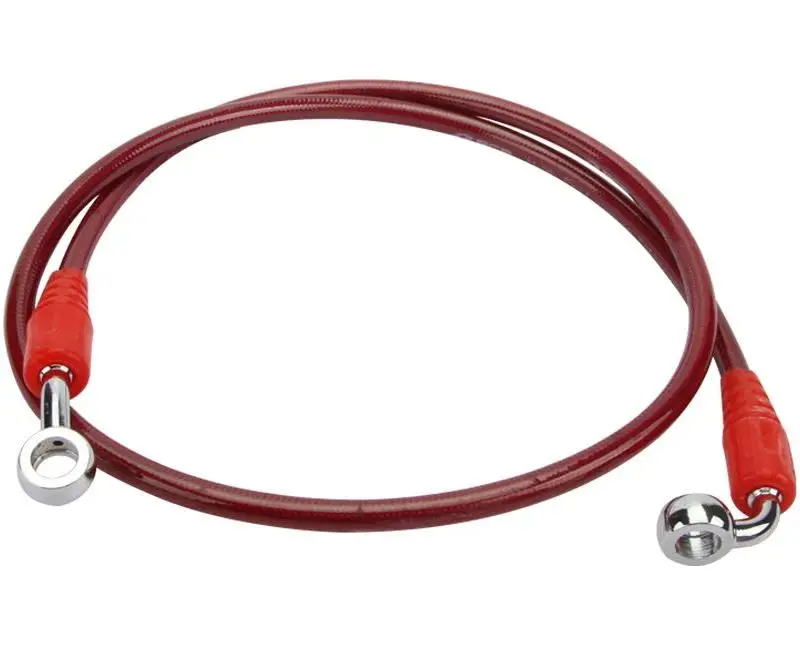

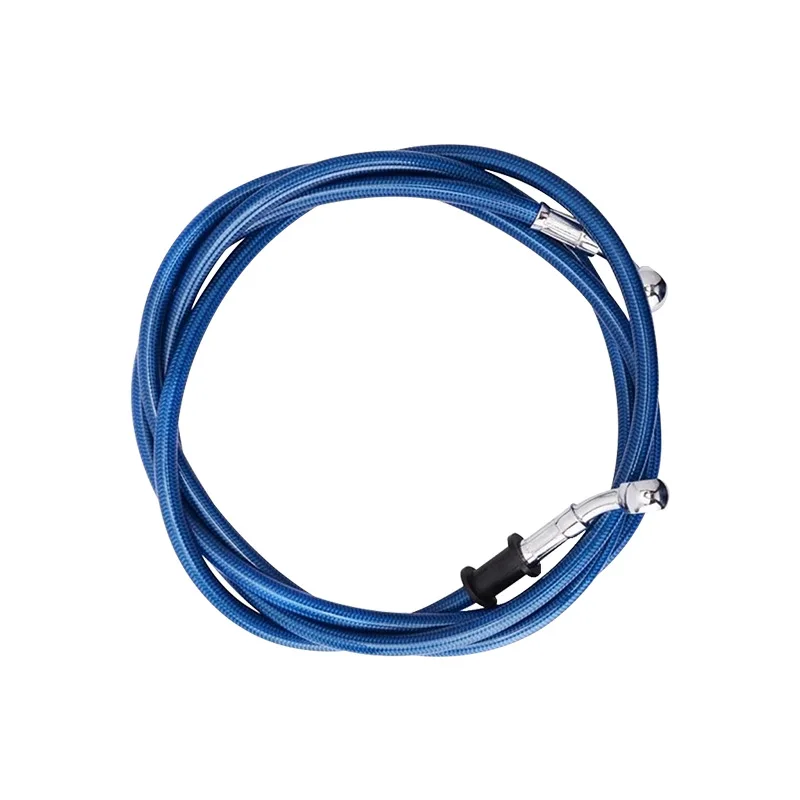

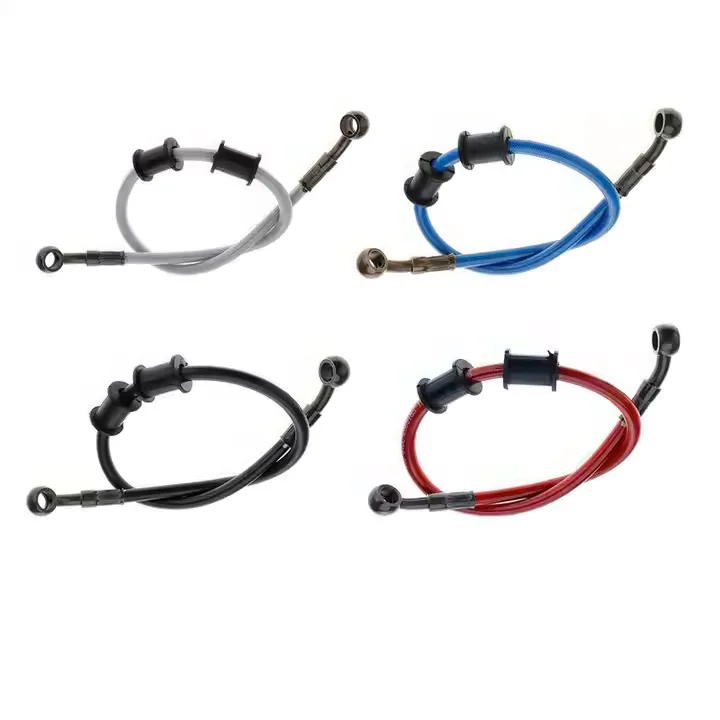

Universal Brake Line DIY Kit with PTFE Hose and Fittings
Some builds need a one-off line that no catalog covers. That is when a universal kit earns its keep.
Ours bundles a length of PTFE brake hose with a box of banjo fittings, unions, and mounting clips. Cut the hose, pick the fittings, and assemble. You are not locked into a pre-made length.
The hose is the same SAE J1401 PTFE we use across the range — 304 SS braid, PU outer layer. The fittings cover the common sizes and angles. It is a practical way to handle custom routing without waiting on a custom quote.
Ours bundles a length of PTFE brake hose with a box of banjo fittings, unions, and mounting clips. Cut the hose, pick the fittings, and assemble. You are not locked into a pre-made length.
The hose is the same SAE J1401 PTFE we use across the range — 304 SS braid, PU outer layer. The fittings cover the common sizes and angles. It is a practical way to handle custom routing without waiting on a custom quote.
5.0
Color:
Customized (Black / Red / Blue / Green / Orange / Silver / Purple / Yellow / Pink)
Working Temputure:
-65°C to 260°C
Hose Size:
3.2mm ID (1/8")
Usage:
Brake, clutch, fuel, turbo oil, cooling, power steering systems
Type:
Brake Hose / Brake Line
Process:
PTFE extrusion → SS braiding → PU coating → Hydraulic crimping
Standard:
SAE J1401 / GB 16897-2010
Product name:
PTFE Brake Hose / Teflon Brake Hose
Certification:
DOT FMVSS 106
Payment Methods:
T/T, PayPal
Quality:
100% pressure tested, 0.05cc/ft expansion, 14,000 PSI burst verified
Package:
Standard export carton / bulk roll / custom
Material:
PTFE inner tube + 304 SS Wire Braid + PU outer layer
Application:
Automotive, motorcycle, racing, custom builds, industrial
Size:
3.2mm ID × 7.2-7.5mm OD
Shipping Options:
FedEx, DHL, Air Freight, Sea Freight, Train
Feature:
High temp resistance, zero expansion, high burst, corrosion resistant
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Details
特氟龙管_17
特氟龙管_15
特氟龙管_14 (2)
| Number | Inner core material | Stainless steel wire type | ID (mm) | OD (mm) | Work pressure (PSI) | Burst pressure (PSI) | Expansion (cc/ft) |
| SAEJ1401-1 | PTFE | 304 | 3.2 | 7.5 | 4660 | 14000 | 0.05 |
| SAEJ1401-2 | PTFE | 304 | 3.2 | 7.2 | 4660 | 14000 | 0.05 |
| Number | Inner core material | Stainless steel wire type | ID (mm) | ID (mm) | Work pressure (PSI) | Burst pressure (PSI) | Temp (℃) |
| SAEJ1401-3 | White core nylon | 201 | 3.2 | 7.5 | 4660 | 8000 | -40~80 |
| SAEJ1401-4 | Black core nylon 12 | 304 | 3.2 | 7.5 | 4660 | 8000 | -40~100 |
| SAEJ1401-5 | White core nylon 12 | 304 | 3.2 | 7.5 | 4660 | 14000 | -40~100 |
| SAEJ1401-6 | White core nylon | 304 | 3.2 | 7.5 | 4660 | 14000 | -40~100 |
Product Information
The kit leans toward versatility over volume. You get enough hose for a full set of lines and a spread of fittings to cover most installations. Straight and angled banjo ends, plus unions for joining sections.
A bench crimp tool does the assembly. If you are set up to crimp, you will have these lines done in an afternoon. For shops that build lines regularly, it is a solid way to keep stock without committing to one vehicle fitment.
Not sure the kit covers your setup? Tell us what you are building and we will point you at the right fitting set. Contact JUNZE for the universal brake line DIY kit.
FAQ
1
Q : What standards does JUNZE PTFE brake hose meet?
A : All hoses are manufactured to SAE J1401 and GB 16897-2010 standards. They comply with DOT FMVSS 106 requirements for the US market. Each hose is pressure-tested before shipment.
2
Q : Can I get custom lengths and fittings?
A : Yes. Custom lengths from 400mm to 2400mm are available. Fitting options include straight, 28°, 45°, and 90° banjo configurations. Choose your core material, braid type, fitting type, and color — we assemble and pressure-test before shipping.
3
Q : Is this hose compatible with all brake fluids?
A : Yes. The PTFE inner tube is compatible with DOT 3, DOT 4, DOT 5.1, and DOT 5 silicone-based brake fluids. It also handles fuel, oil, methanol, and water, making it suitable for clutch, fuel, and turbo oil line applications.
4
Q : What is the MOQ?
A : Bulk hose MOQ varies by size and quantity. Contact us for volume pricing and OEM contract terms.
