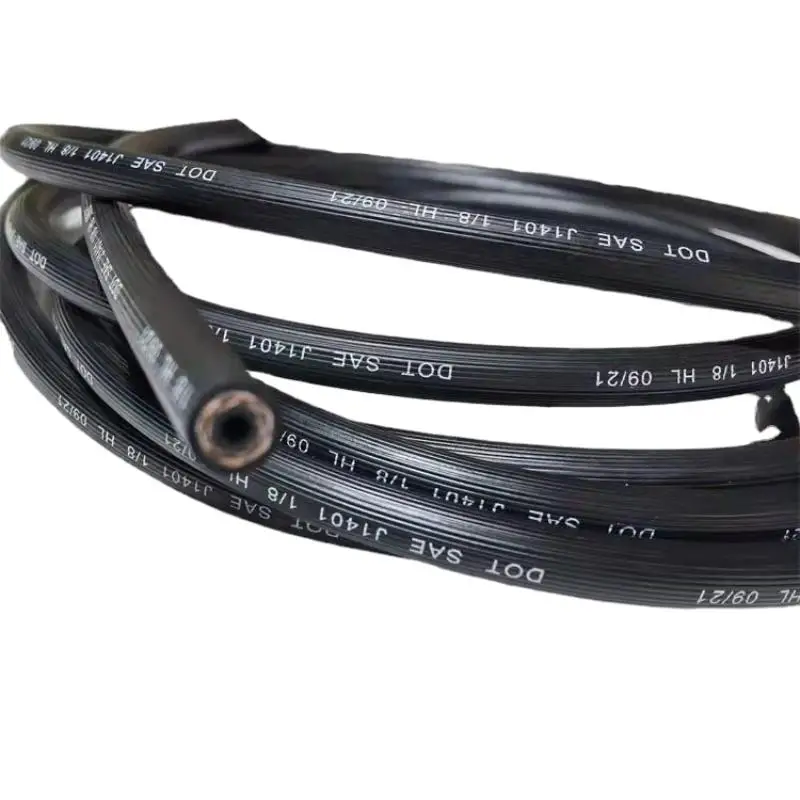

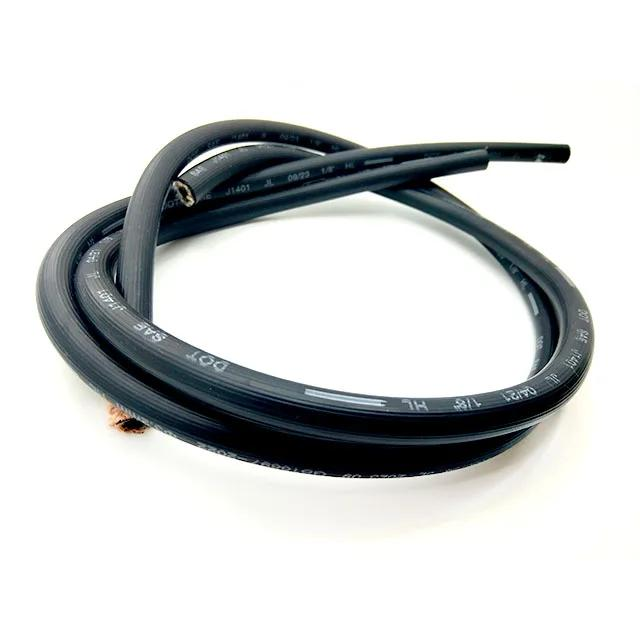

1/4 Inch Hydraulic Brake Hose Coil for Pickups and Vans JUNZE
Most brake hose coverage stops at the two smaller bores. The 1/4 inch size is where light commercial work begins — pickups carrying real loads, vans with long wheelbases, and the light trucks that behave somewhere between a van and a truck.

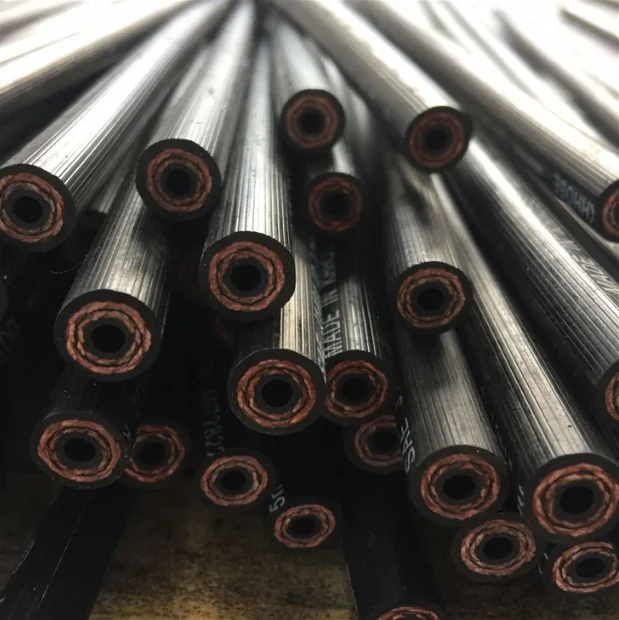

The JUNZE 6.3mm coil holds a 6.45mm ±0.15 actual ID inside a 15mm outer diameter, wall at 3.65mm, with the multi-strand fiber braid carrying a 50 MPa burst minimum under SAE J1401.
Workshops serving mixed fleets usually run this roll next to the 3/16 inch one. Between the two bores, most of a light commercial customer base is covered.Product Details
| Dimension. mm | Inch | I.D. mm | O.D. mm | Wall Thickness mm | Wall Diff Max.mm | Max Expansion ml/m 6.9MPa 10.3MPa | Burst Pressure Min.MPa | |
| 3.2 | 1/8" | 3.35±0.15 | 10.5±0.2 | 3.65 | 0.3 | 0.25 | 0.36 | 80 |
| 3.2 | 1/8" | 3.35±0.15 | 10.5±0.2 | 3.65 | 0.3 | 0.36 | 0.48 | 80 |
| 3.2 | 1/8" | 3.35±0.15 | 10.5±0.2 | 3.65 | 0.3 | 0.45 | 0.55 | 80 |
| 3.2 | 1/8" | 3.35±0.15 | 10.5±0.2 | 3.65 | 0.3 | 0.60 | 0.8 | 70 |
| 3.2 | 1/8" | 3.35±0.15 | 9.0±0.2 | 2.92 | 0.3 | 0.45 | 0.55 | 80 |
| 4.8 | 3/16" | 4.8±0.2 | 12.5±0.3 | 3.85 | 0.3 | 1.81 | 2.36 | 60 |
| 6.3 | 1/4" | 6.1±0.2 | 15±0.4 | 3.65 | 0.3 | 2.69 | 3.84 | 50 |
Product Information
Expansion at this bore runs 2.69 ml/m under 6.9 MPa and 3.84 ml/m under 10.3 MPa — catalog-tested values, higher in absolute terms than the small bores because a wider tube holds more volume, and consistent enough to calibrate a crimp process against.
The fiber braid contributes the tensile strength behind the burst rating; the cover handles ozone and weathering, which matters for light commercial vehicles that spend their lives parked in the open between jobs.

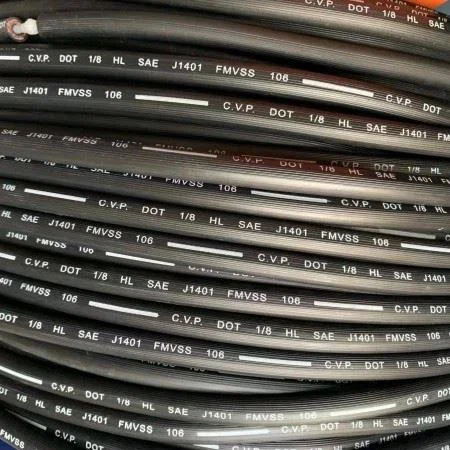

Rolls ship in workshop dispensing formats. Tell us the fleet mix your counter serves and we will set the roll program around it.
