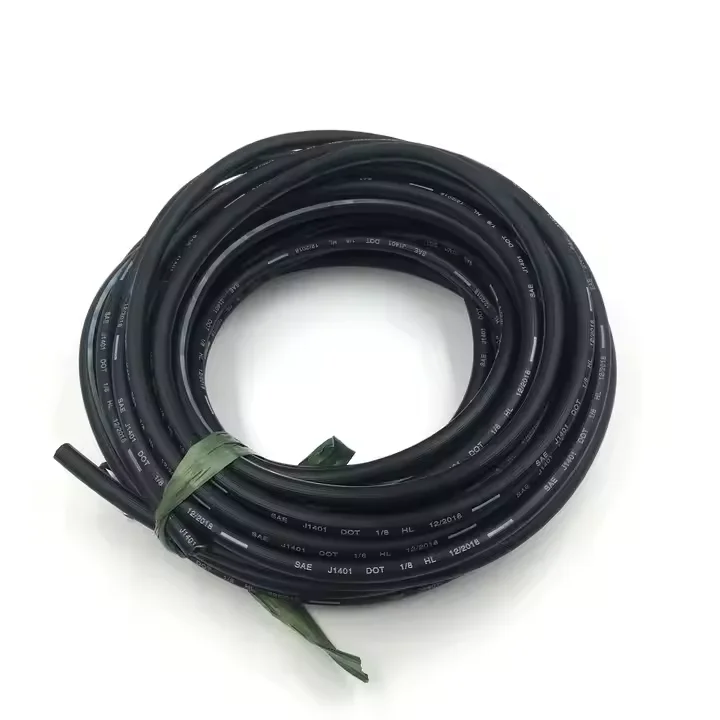

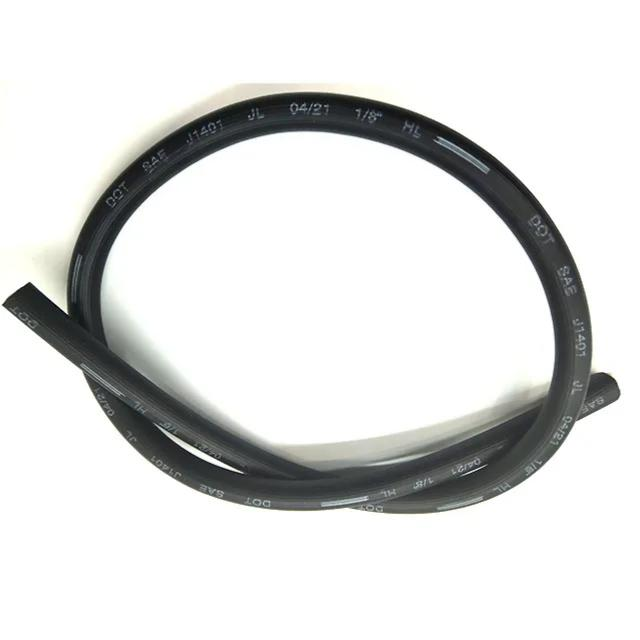

Motorcycle Hydraulic Brake Hose Coil, 3.2mm ID, JUNZE
Motorcycle brake hose has its own economics. The runs are short, the volumes per bike are small, and the shops that service bikes cut every line to fit — which makes a bulk coil the natural supply format for this market, not finished assemblies.
The JUNZE 3.2mm coil carries the strongest burst figure in the hydraulic range, 80 MPa minimum, with wall at 3.65mm over a 10.5mm outer diameter. Actual ID holds to 3.35mm ±0.15.
Stockists serving the motorcycle trade typically cut this coil against the bike in front of them — stock length for the model on common machines, one-off for the rest.Product Details
| Dimension. mm | Inch | I.D. mm | O.D. mm | Wall Thickness mm | Wall Diff Max.mm | Max Expansion ml/m 6.9MPa 10.3MPa | Burst Pressure Min.MPa | |
| 3.2 | 1/8" | 3.35±0.15 | 10.5±0.2 | 3.65 | 0.3 | 0.25 | 0.36 | 80 |
| 3.2 | 1/8" | 3.35±0.15 | 10.5±0.2 | 3.65 | 0.3 | 0.36 | 0.48 | 80 |
| 3.2 | 1/8" | 3.35±0.15 | 10.5±0.2 | 3.65 | 0.3 | 0.45 | 0.55 | 80 |
| 3.2 | 1/8" | 3.35±0.15 | 10.5±0.2 | 3.65 | 0.3 | 0.60 | 0.8 | 70 |
| 3.2 | 1/8" | 3.35±0.15 | 9.0±0.2 | 2.92 | 0.3 | 0.45 | 0.55 | 80 |
| 4.8 | 3/16" | 4.8±0.2 | 12.5±0.3 | 3.85 | 0.3 | 1.81 | 2.36 | 60 |
| 6.3 | 1/4" | 6.1±0.2 | 15±0.4 | 3.65 | 0.3 | 2.69 | 3.84 | 50 |
Product Information
Two properties matter most at this bore. The first is expansion: 0.25 ml/m under 6.9 MPa and 0.36 ml/m under 10.3 MPa, catalog-tested figures. A motorcycle system holds little fluid, so expansion shows up directly at the lever.

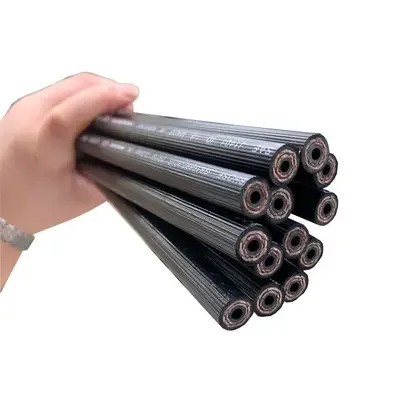

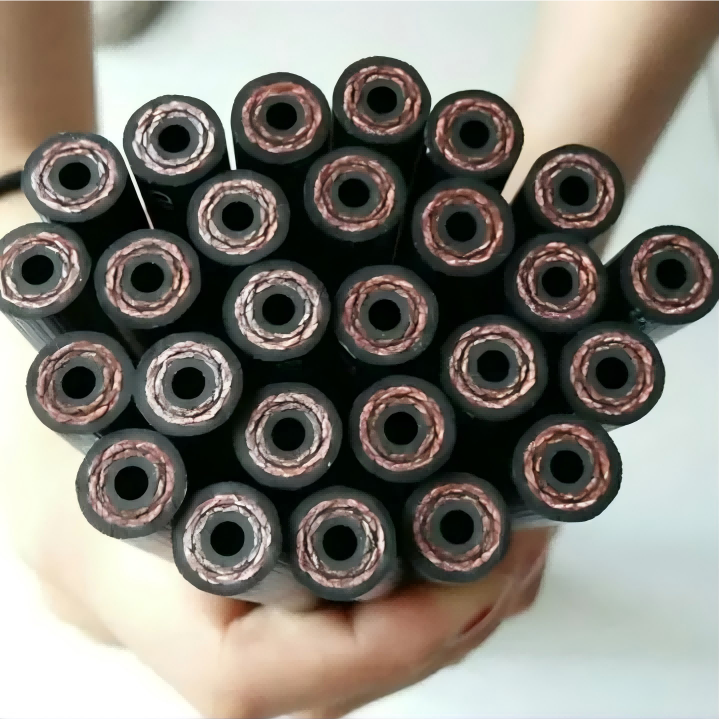

The second is flex life. The multi-strand fiber braid bends through tight routing at the fork and caliper without work-hardening, cycle after cycle of suspension movement.
Coils ship in dispensing formats sized for counter trade. Send the brands and models your shop covers and we will quote the roll supply that matches the cut volume.
