Textile-Reinforced Air Brake Hose SAE J1402 for Bus Trailer Connection JUNZE
JUNZE Textile-Reinforced Air Brake Hose is designed for trailer connection lines where flexibility and durability matter. This SAE J1402 compliant hose uses a three-layer construction — EPDM inner tube, high-tensile textile braid reinforcement, and an oil/ozone/weather resistant outer cover. No spring guard, no coil memory — just a straight, flexible rubber hose that routes cleanly between bus and trailer. The textile braid gives the hose its burst strength while keeping it flexible enough for tight coupling areas. Working pressure 1.2MPa, burst pressure no less than 4.8MPa. Available in 3/8 inch and 1/2 inch inner diameters.
5.0
Color:
Customized Color
Working Temputure:
-40℃ to 120℃
Standard:
SAE J1402 / GB16897
Product name:
Air Pressure Brake Hose
Certification:
ISO/TS16949, IATF-16949, ISO9001, DOT
Payment Methods:
T/T, PayPal
Package:
Woven Bag, Carton, Pallet
Material:
EPDM/Nylon
Terms:
EXW, FOB, CIF, DDU, DDP
Shipping Options:
FedEx, DHL, Air Freight, Sea Freight, Train
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Details
气压制动管_08
气压制动管_15
气压制动管_11
| Dimension. mm | Inch | I.D. mm | O.D. mm | Wall Thickness mm | Wall Diff Max.mm | Work Pressure | Burst Pressure Min.MPa |
| 4.8 | 3/16" | 5±0.3 | 14±0.3 | 4.5 | 0.3 | 1.4 | 10 |
| 9.5 | 3/8" | 10+0.4/-0.2 | 17±0.4 | 3.5 | 0.3 | 1.4 | 10 |
| 12.7 | 1/2" | 13±0.4 | 23±0.5 | 5 | 0.3 | 1.4 | 10 |
| 9.5 | 3/8" | 9.5±0.4 | 19.1±0.5 | 4.8 | 0.3 | 1.4 | 10 |
| 12.7 | 1/2" | 12.7±0.4 | 22.2±0.5 | 4.75 | 0.3 | 1.4 | 10 |
Product Information

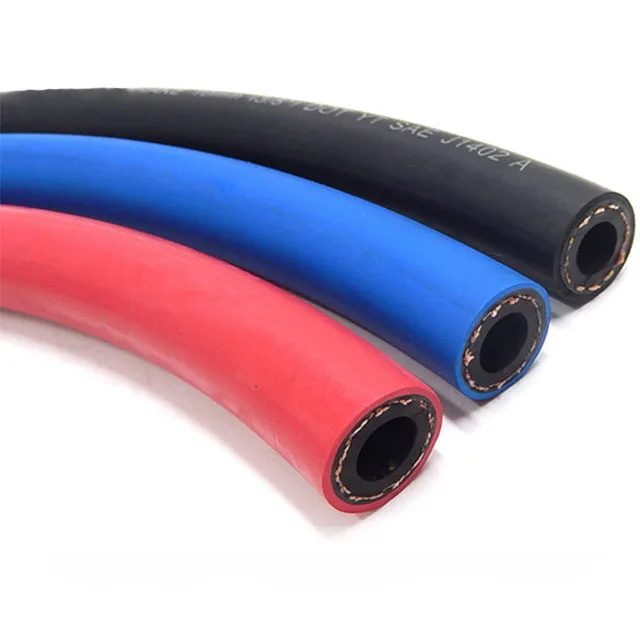

SAE J1402 compliant. Three-layer construction: EPDM inner tube, textile braid reinforcement, weather-resistant outer cover.
Available in 3/8 inch and 1/2 inch inner diameters.
Working pressure 1.2MPa, burst pressure no less than 4.8MPa.
Flexible for routing in tight coupling areas between bus and trailer.
Outer cover resists oil, ozone, and weather.
Temperature range from -40°C to +120°C.
Suitable for bus and trailer air line connections and general pneumatic applications.
Specify your inner diameter and total length per piece. We will cut to length and supply with reusable fittings within 7 business days.
FAQ
1
Q : Are the air brake hoses durable and aging resistant?
A : Yes, they are oil, ozone and weather resistant, with long service life.
