Air Brake Hose Assembly with Fittings SAE J1402 Pre-Crimped for Bus JUNZE
Product Details
| Dimension. mm | Inch | I.D. mm | O.D. mm | Wall Thickness mm | Wall Diff Max.mm | Work Pressure | Burst Pressure Min.MPa |
| 4.8 | 3/16" | 5±0.3 | 14±0.3 | 4.5 | 0.3 | 1.4 | 10 |
| 9.5 | 3/8" | 10+0.4/-0.2 | 17±0.4 | 3.5 | 0.3 | 1.4 | 10 |
| 12.7 | 1/2" | 13±0.4 | 23±0.5 | 5 | 0.3 | 1.4 | 10 |
| 9.5 | 3/8" | 9.5±0.4 | 19.1±0.5 | 4.8 | 0.3 | 1.4 | 10 |
| 12.7 | 1/2" | 12.7±0.4 | 22.2±0.5 | 4.75 | 0.3 | 1.4 | 10 |
Product Information
Complete assembly with pre-crimped fittings. SAE J1402 compliant.

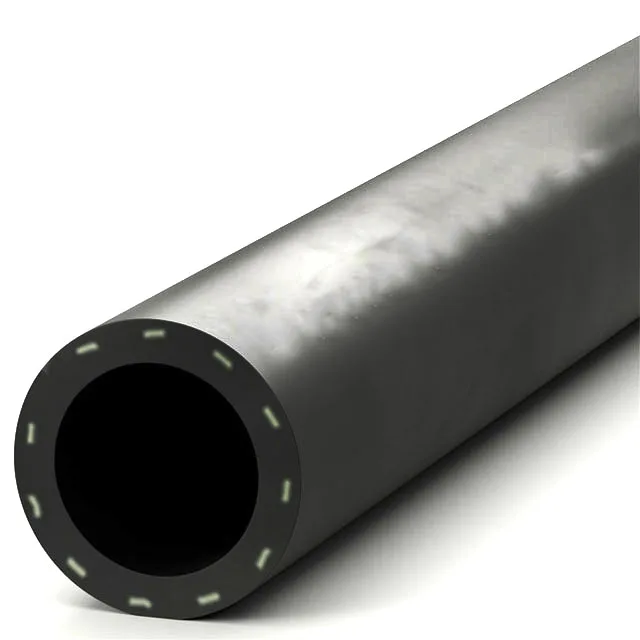

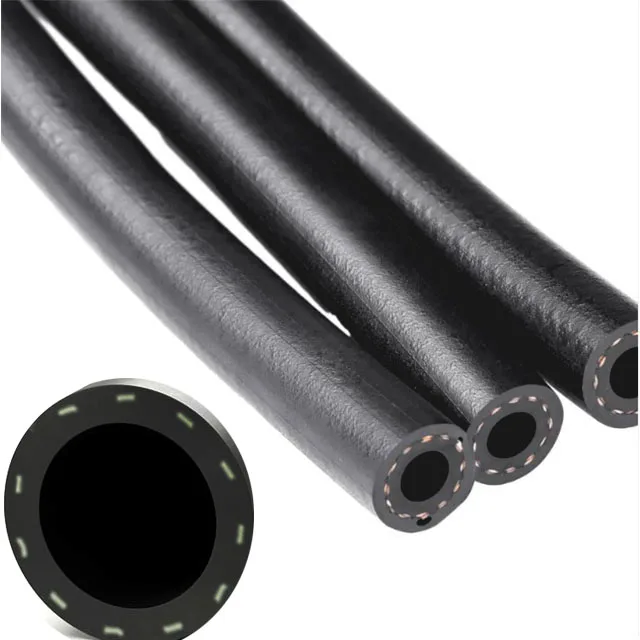

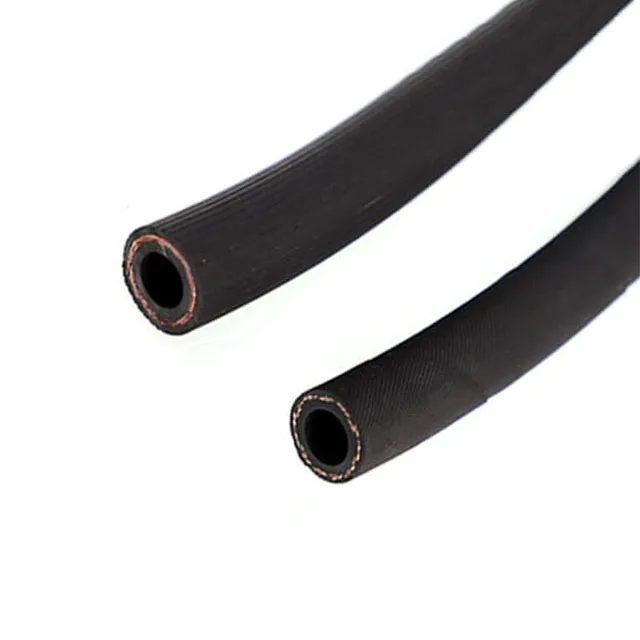

EPDM hose body with textile braid reinforcement (three-layer construction).
Available in 3/8 inch and 1/2 inch inner diameters.
Fittings in brass or zinc-plated steel.
Custom lengths available to match specific vehicle routing.
Crimping parameters are traceable per batch.
Working pressure 1.2MPa, burst pressure no less than 4.8MPa.
Temperature range from -40°C to +120°C.
Suitable for bus air brake systems and commercial vehicle pneumatic applications.
Direct replacement installation.
Send us a photo of your current hose assembly showing both end fitting types and overall length. We will match the configuration and send a quote within one business day.
