Standard rubber brake hoses expand under heat, and that kills pedal feel. The JUNZE SAEJ1401-1 PTFE brake hose solves that problem. Its PTFE inner tube handles extreme temperatures from -65°C to 260°C, so even after repeated hard stops, the pedal stays firm and consistent.
The 304 stainless steel wire braid wraps the PTFE core tight, pushing burst pressure to 14,000 PSI while keeping expansion down to 0.05cc/ft. That is about one-tenth of what a standard rubber hose expands at the same pressure.

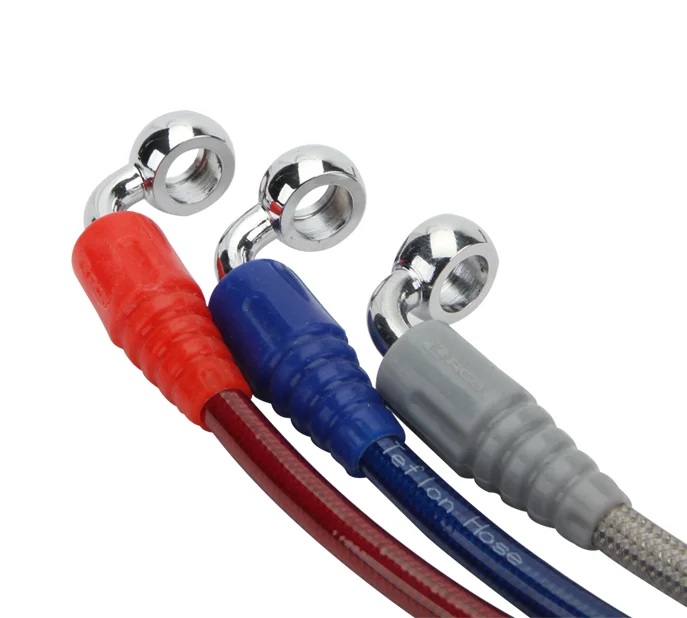

This brake line is built for vehicles that see track time, off-road use, or sustained high-speed driving. It meets SAE J1401 and DOT FMVSS 106 standards, so it is certified for road use. Available as bulk tubing or pre-assembled with your choice of banjo fittings.
The 304 stainless steel wire braid wraps the PTFE core tight, pushing burst pressure to 14,000 PSI while keeping expansion down to 0.05cc/ft. That is about one-tenth of what a standard rubber hose expands at the same pressure.
This brake line is built for vehicles that see track time, off-road use, or sustained high-speed driving. It meets SAE J1401 and DOT FMVSS 106 standards, so it is certified for road use. Available as bulk tubing or pre-assembled with your choice of banjo fittings.
5.0
Color:
Customized (Black / Red / Blue / Green / Orange / Silver / Purple / Yellow / Pink)
Working Temputure:
-65°C to 260°C
Hose Size:
3.2mm ID (1/8")
Usage:
Brake, clutch, fuel, turbo oil, cooling, power steering systems
Type:
Brake Hose / Brake Line
Process:
PTFE extrusion → SS braiding → PU coating → Hydraulic crimping
Standard:
SAE J1401 / GB 16897-2010
Product name:
PTFE Brake Hose / Teflon Brake Hose
Certification:
DOT FMVSS 106
Payment Methods:
T/T, PayPal
Quality:
100% pressure tested, 0.05cc/ft expansion, 14,000 PSI burst verified
Package:
Standard export carton / bulk roll / custom
Material:
PTFE inner tube + 304 SS Wire Braid + PU outer layer
Application:
Automotive, motorcycle, racing, custom builds, industrial
Size:
3.2mm ID × 7.2-7.5mm OD
Shipping Options:
FedEx, DHL, Air Freight, Sea Freight, Train
Feature:
High temp resistance, zero expansion, high burst, corrosion resistant
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Details
特氟龙管_19
特氟龙管_13
特氟龙管_11
| Number | Inner core material | Stainless steel wire type | ID (mm) | OD (mm) | Work pressure (PSI) | Burst pressure (PSI) | Expansion (cc/ft) |
| SAEJ1401-1 | PTFE | 304 | 3.2 | 7.5 | 4660 | 14000 | 0.05 |
| SAEJ1401-2 | PTFE | 304 | 3.2 | 7.2 | 4660 | 14000 | 0.05 |
| Number | Inner core material | Stainless steel wire type | ID (mm) | ID (mm) | Work pressure (PSI) | Burst pressure (PSI) | Temp (℃) |
| SAEJ1401-3 | White core nylon | 201 | 3.2 | 7.5 | 4660 | 8000 | -40~80 |
| SAEJ1401-4 | Black core nylon 12 | 304 | 3.2 | 7.5 | 4660 | 8000 | -40~100 |
| SAEJ1401-5 | White core nylon 12 | 304 | 3.2 | 7.5 | 4660 | 14000 | -40~100 |
| SAEJ1401-6 | White core nylon | 304 | 3.2 | 7.5 | 4660 | 14000 | -40~100 |
Product Information

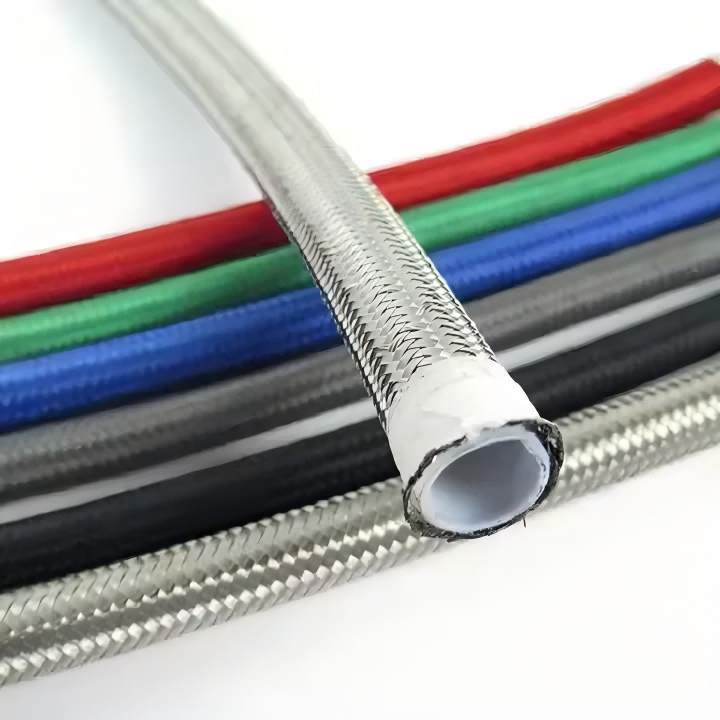

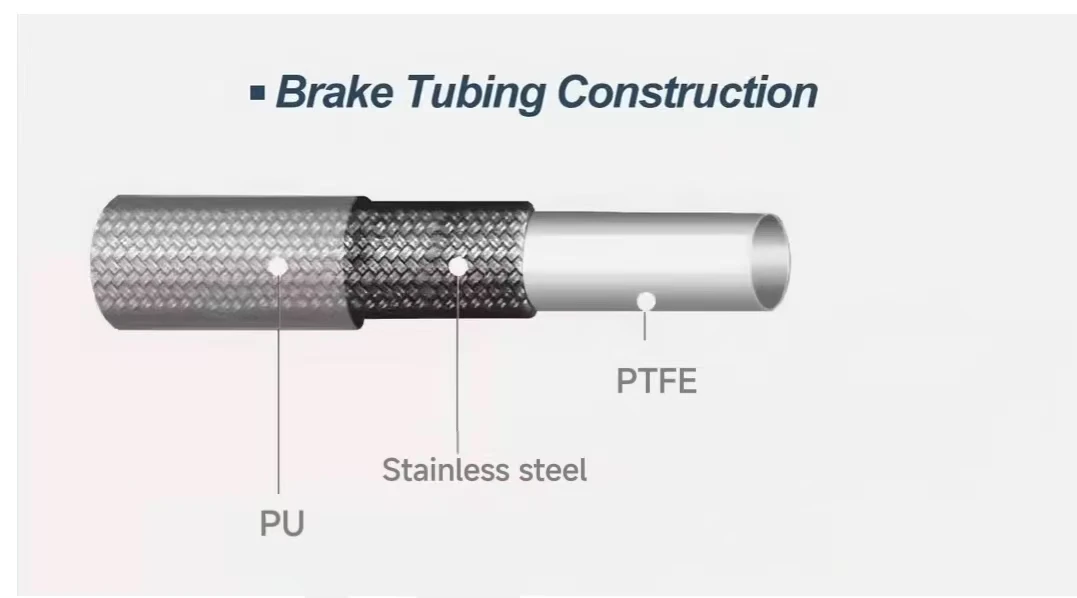

Three layers working together. The PTFE inner tube resists brake fluid, fuel, oil, and methanol — it will not swell or degrade over time. The 304 stainless steel braid adds the strength. The PU outer layer protects against abrasion, road debris, and ozone.
Each hose is tested to hold at 14,000 PSI burst pressure, with a working pressure of 4,660 PSI. That is a solid 3:1 safety margin. The 0.05cc/ft expansion rate means the hose will not balloon under hard braking, so every pedal input goes straight to the caliper.

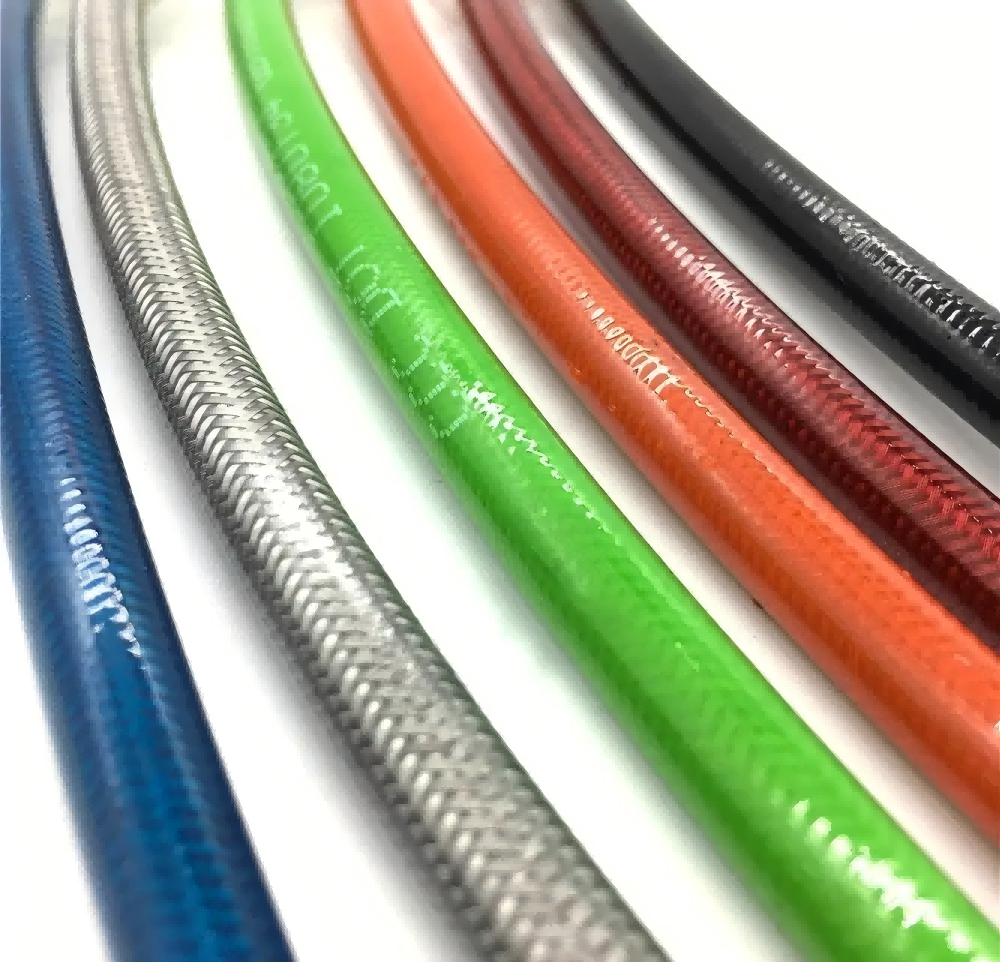

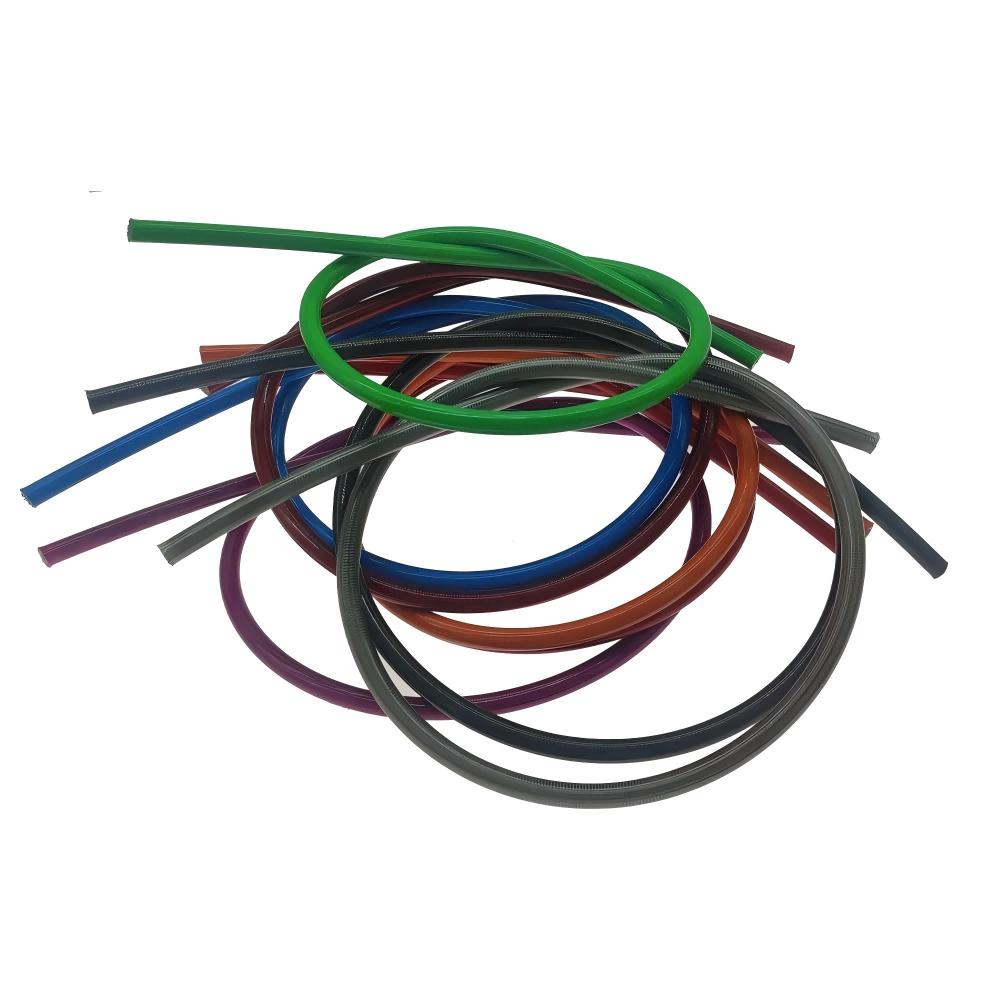

Available in multiple colors: silver, black, red, blue, green, orange, purple, and more. Custom lengths, fitting angles, and end types are available. Contact JUNZE for your OEM or custom brake line requirements.
FAQ
1
Q : What standards does JUNZE PTFE brake hose meet?
A : All hoses are manufactured to SAE J1401 and GB 16897-2010 standards. They comply with DOT FMVSS 106 requirements for the US market. Each hose is pressure-tested before shipment.
2
Q : Can I get custom lengths and fittings?
A : Yes. Custom lengths from 400mm to 2400mm are available. Fitting options include straight, 28°, 45°, and 90° banjo configurations. Choose your core material, braid type, fitting type, and color — we assemble and pressure-test before shipping.
3
Q : Is this hose compatible with all brake fluids?
A : Yes. The PTFE inner tube is compatible with DOT 3, DOT 4, DOT 5.1, and DOT 5 silicone-based brake fluids. It also handles fuel, oil, methanol, and water, making it suitable for clutch, fuel, and turbo oil line applications.
4
Q : What is the MOQ?
A : Bulk hose MOQ varies by size and quantity. Contact us for volume pricing and OEM contract terms.
